Acorn System Refurbishment (double height card frame)

I've decided to go for a double height card frame so that I can use my 14-slot backplane in the bottom half and put floppy disk drives and the PSU in the top.  I'm now also able to fit proper Vero panels to the boards and lose the curtain rails.

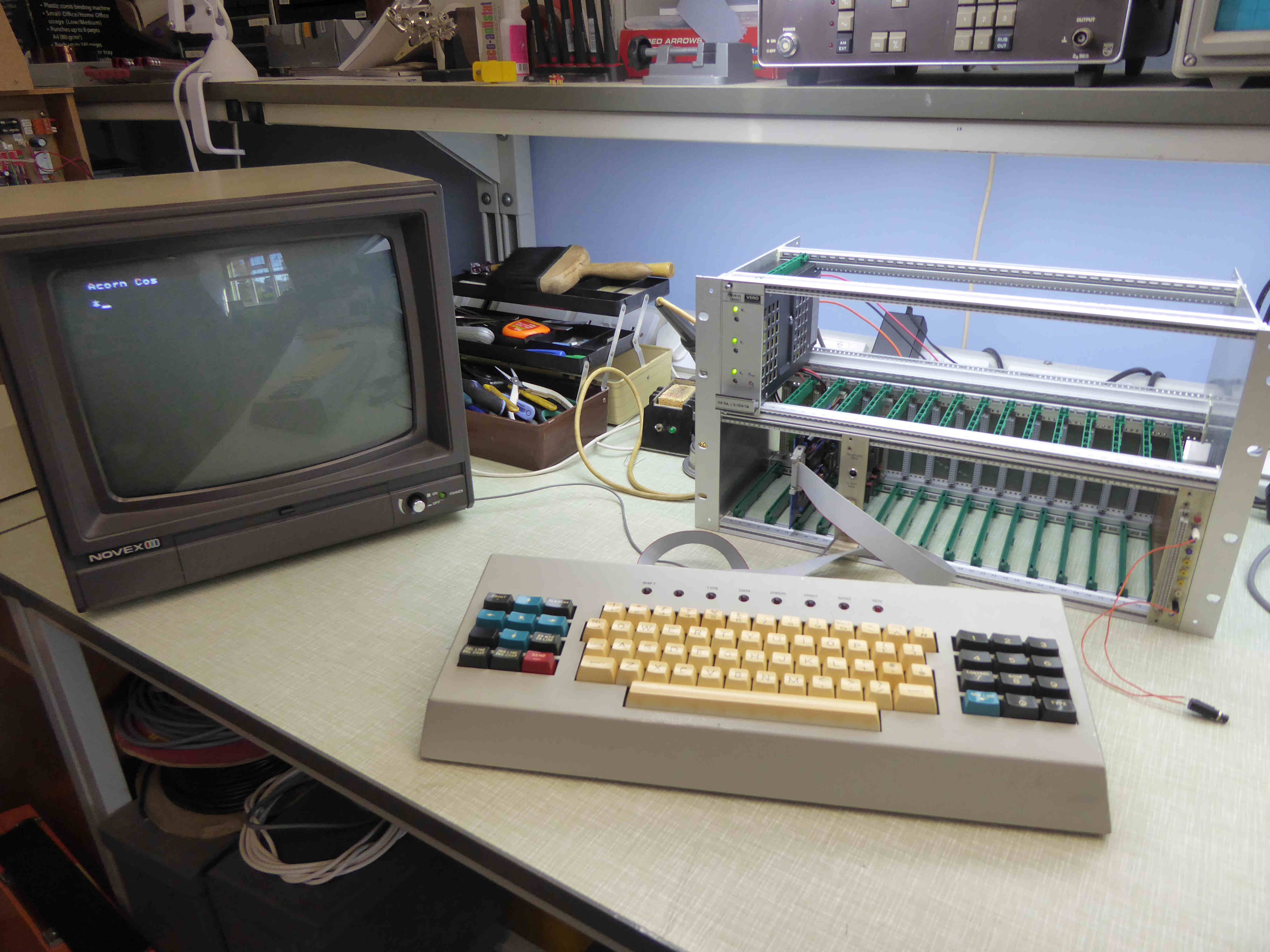

Powered up and it works !

My Acorn System RefurbishmentMy Acorn System Refurbishment

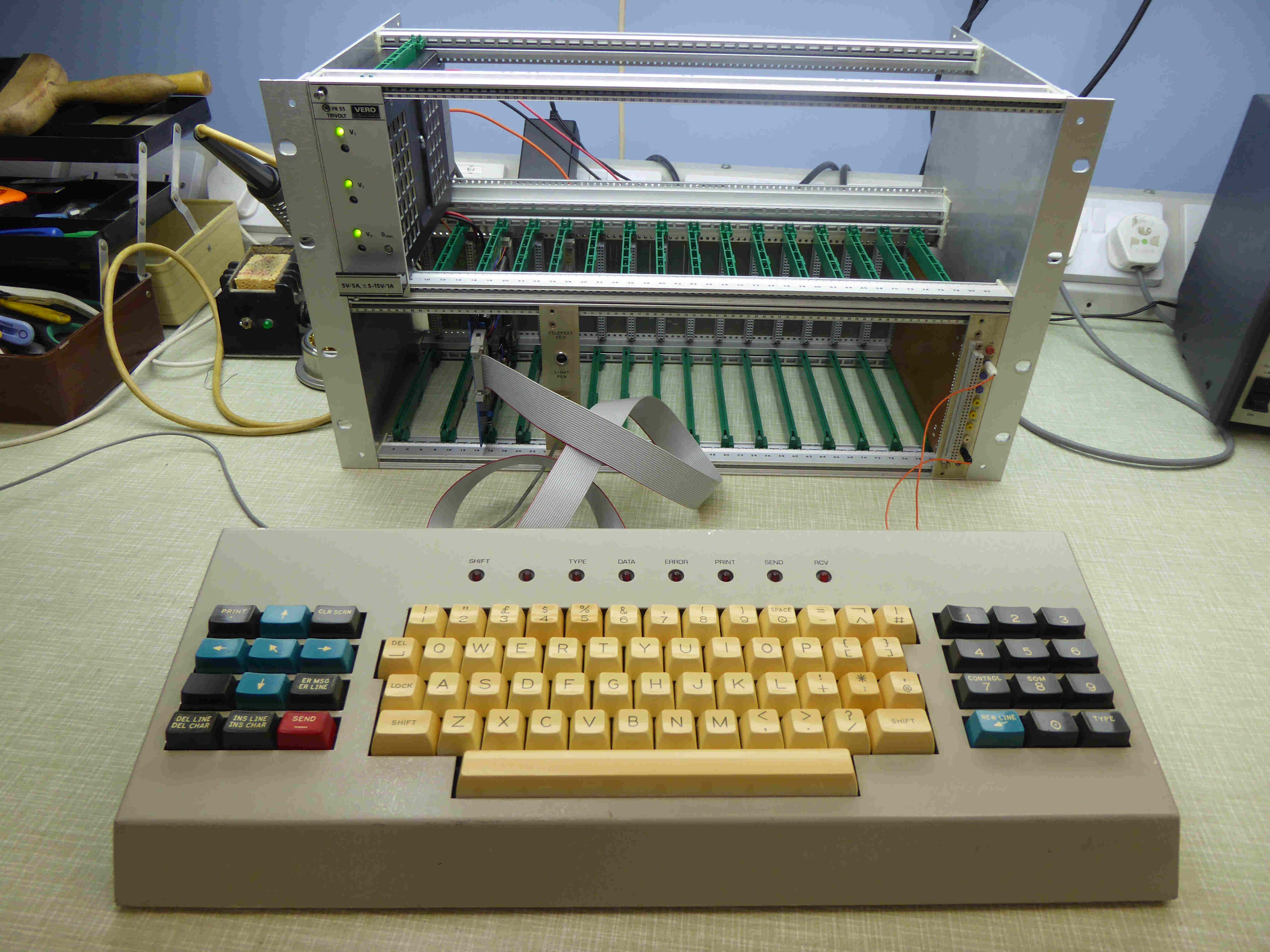

and some more boards fitted:

My Acorn System Refurbishment


As I've lost one of my 6502 boards I want to save the original Acorn board for the System 1 so I have wired up a new 6502 board for the card frame system:

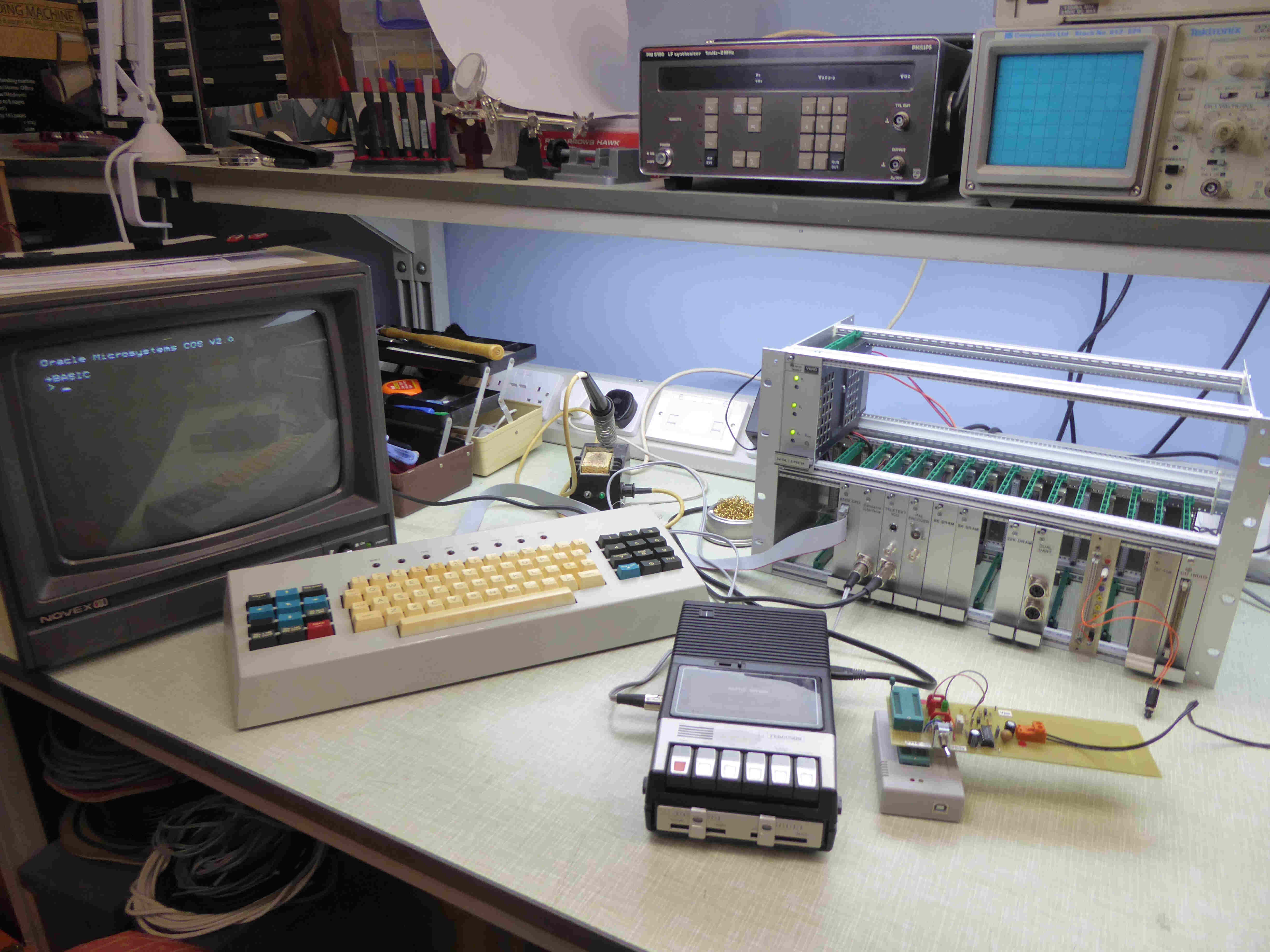

Finally the cassette interface is working (after fitting a new drive belt to the cassette recorder):

My Acorn System Refurbishment

So that's a working System 2, next to upgrade to a System 3, but then along came some replica System 1 Boards . . . .

Replica Boards
