RM 65 Backplane

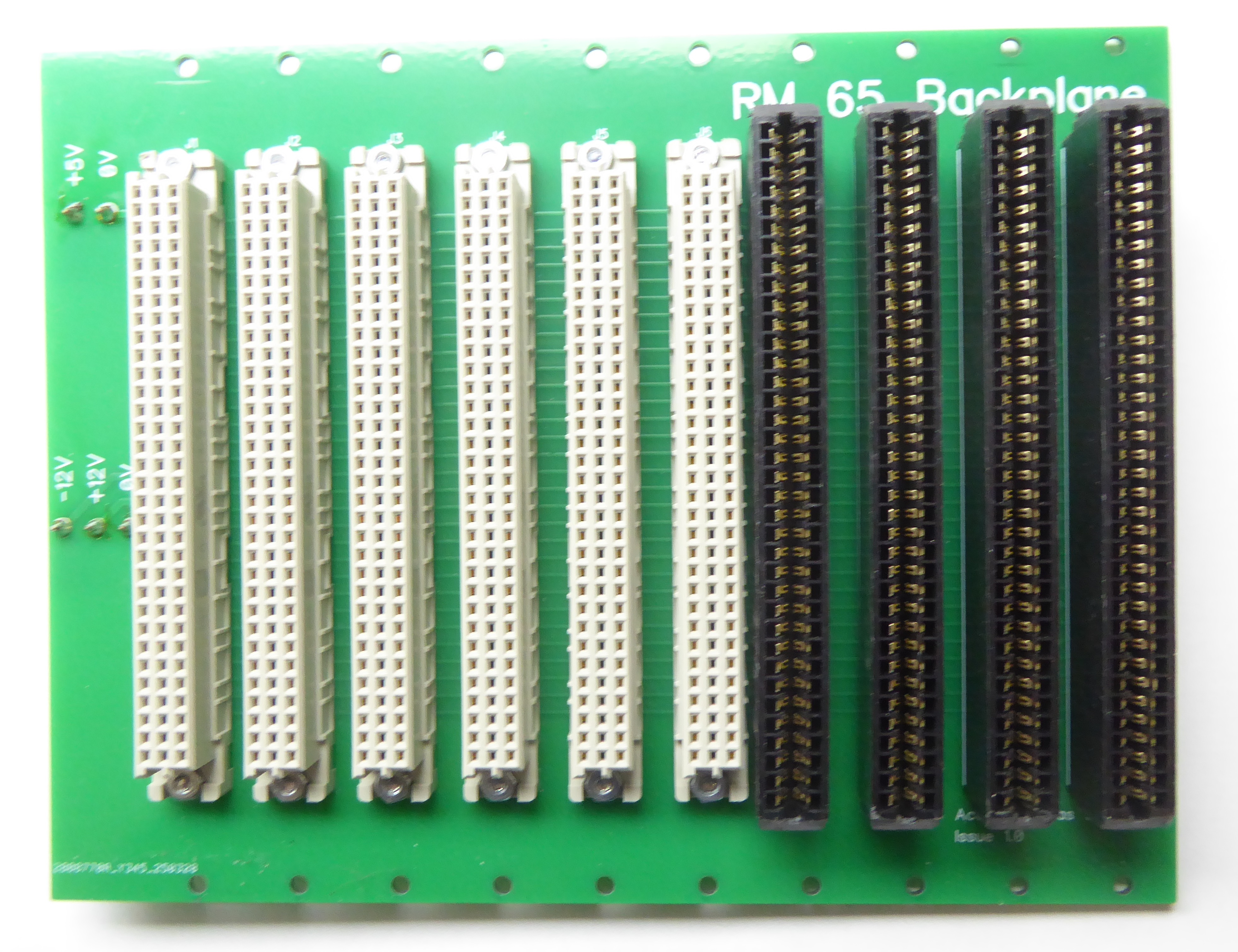

RM 65 Card Cages are difficult to come by so I made this Backplane which fits a half width Vero Eurocard Rack.  To allow the use of both Euroconnector and Edgeconnector Modules it has both types of sockets fitted.

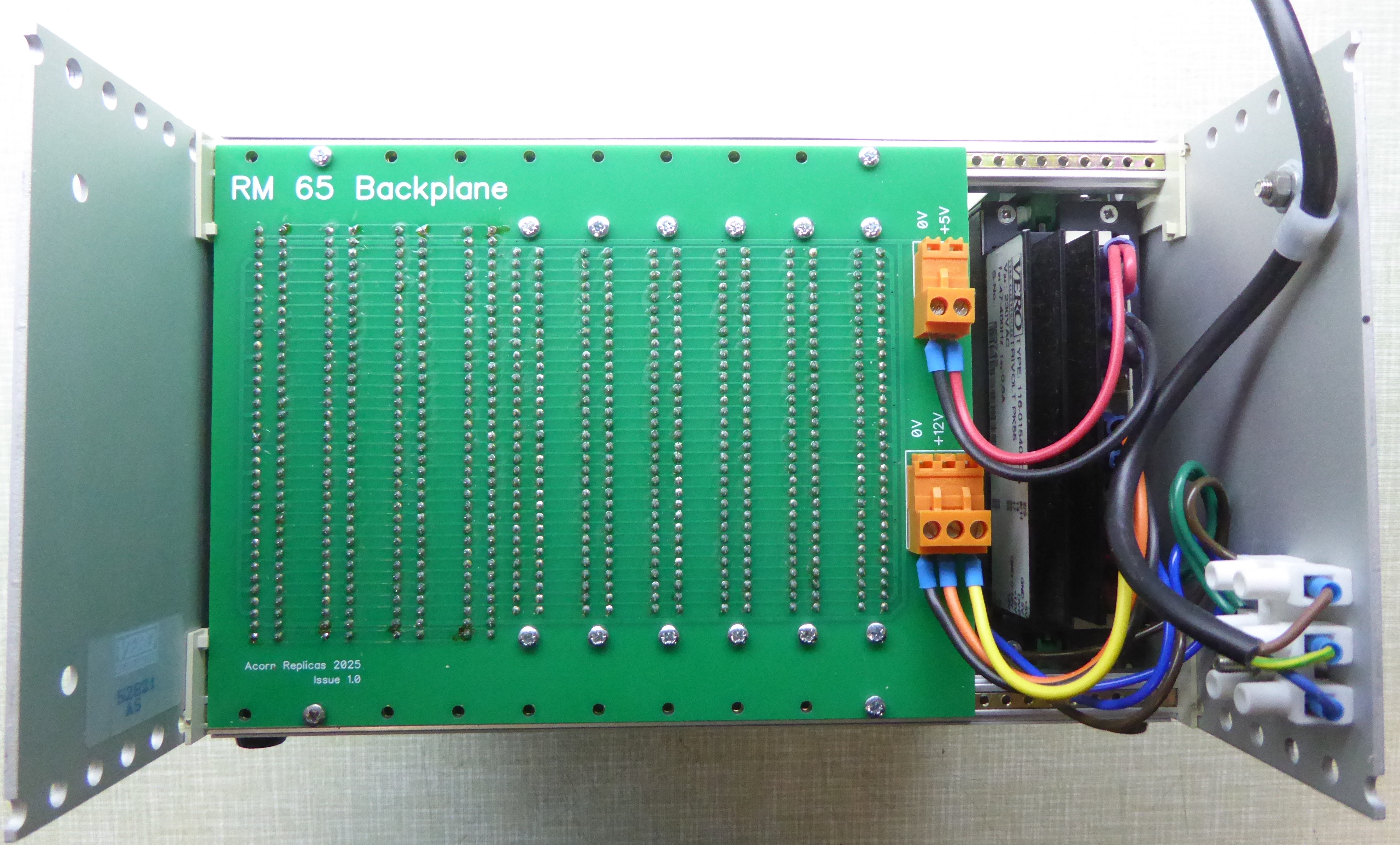

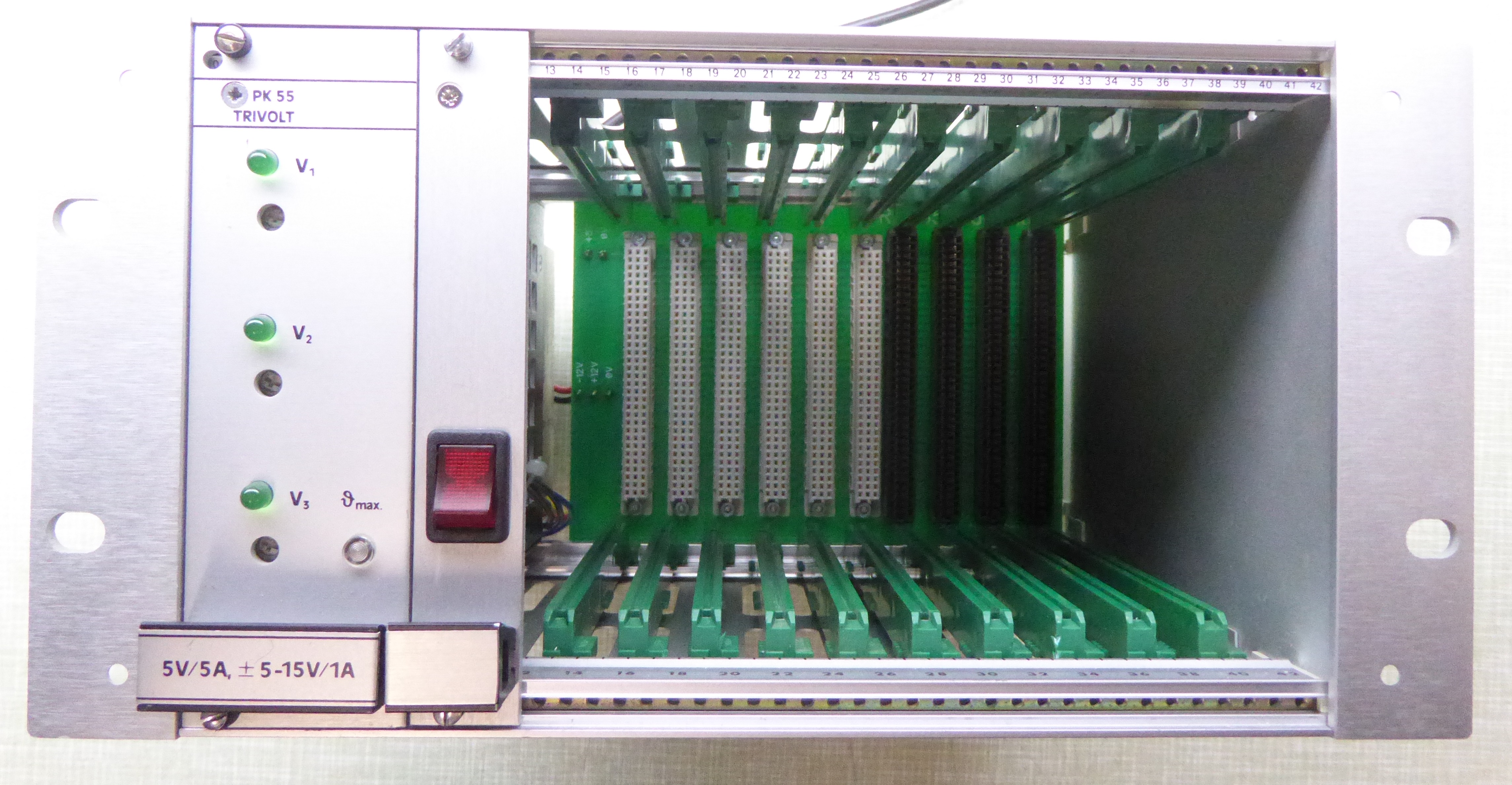

The Rack is fitted with a PK55 Trivolt power supply which provides +5V (@5A) as well as +12V (@1A) and -12V (@1A).

Schematic

• RM 65 Backplane Schematic

Bill Of Materials

• RM 65 Backplane BOM

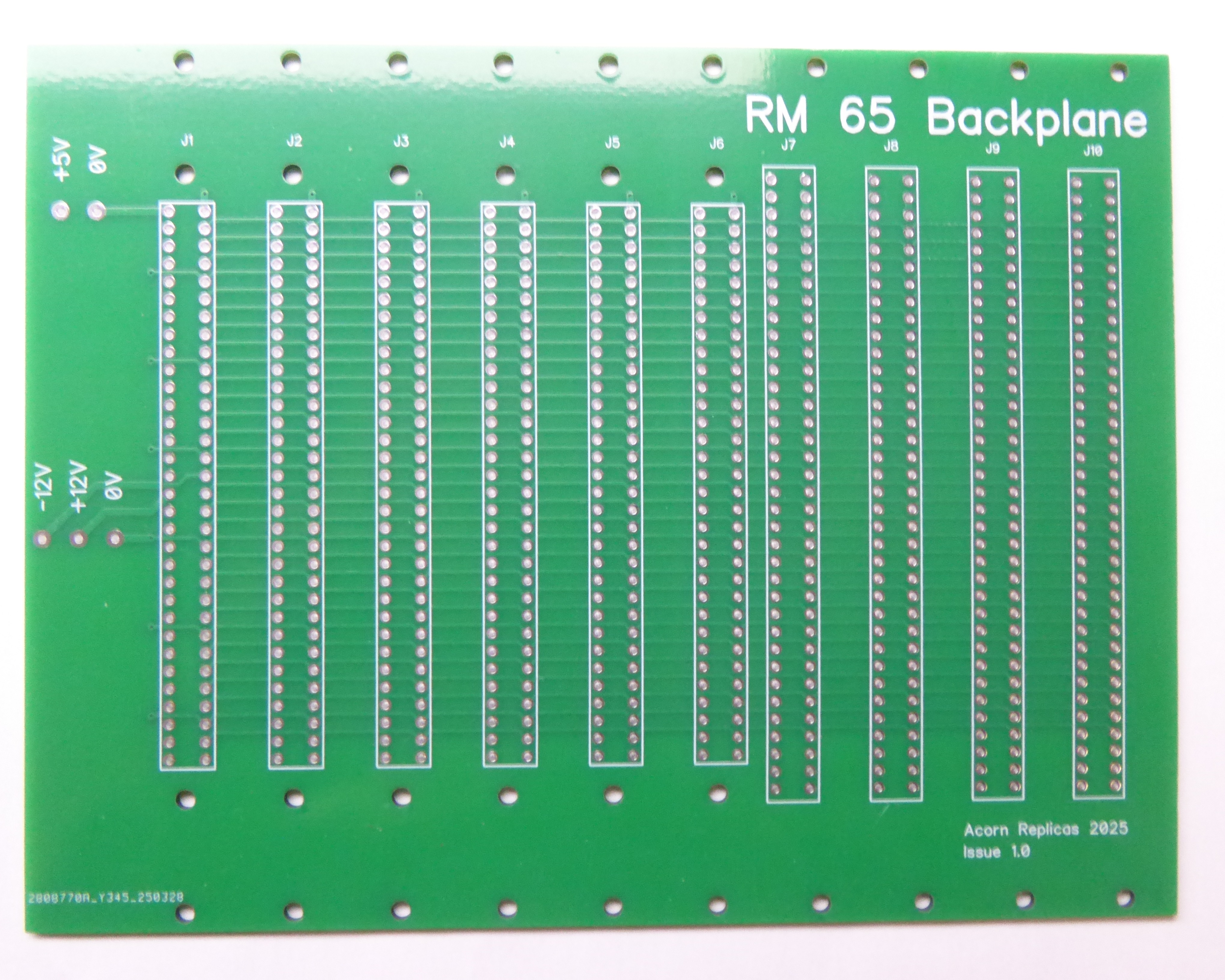

Blank PCB
